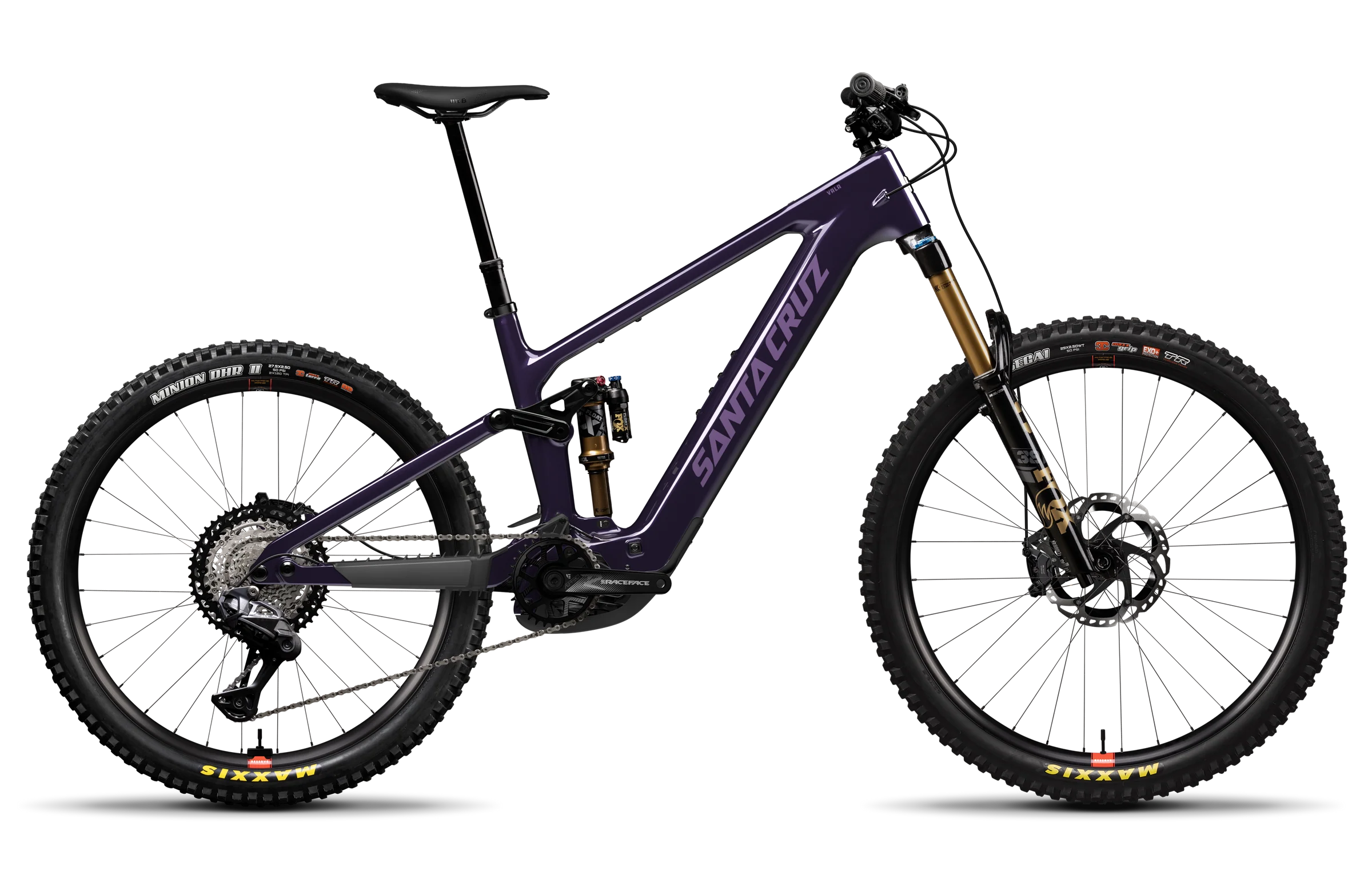

2026 Santa Cruz Vala C XT Di2-Kit
The Vala is a full-power ebike that delivers precision and power. It’s made for riders looking for focused performance on the best trails. Perfectly balanced, refined suspension and the finest quality construction, as always.
- Carbon C Frame
- FOX 38 Factory Fork
- FOX Float X Factory Shock
- Shimano 26 Deore XT M8260 Di2 SGS 12spd Drivetrain
- Bosch Performance CX BDU38 Drive Unit
Specs
*Please note: we make every effort to ensure accuracy of spec information, but they are subject to change.
| Frame | |
|---|---|
|
Material |
Carbon C |
|
Frame |
Carbon C MX 150mm Travel 4-Bar |
|
Travel |
150mm |
|
Weight |
47.3lbs / 21.45kg |
|
Wheel Size |
MX |
| Suspension | |
|
Fork |
FOX 38 Factory, Grip X2, 160mm |
|
Shock |
FOX Float X Factory, 205x60 |
| Drivetrain | |
|
Bottom Bracket |
N/A |
|
Cassette |
Shimamo XT 8200, 10-51t |
|
Chain |
Shimano XT 8100, 12spd |
|
Chainguide |
OneUp Chainguide |
|
Crankset |
RaceFace Aeffect R All Sizes: 160mm |
|
Rear Derailleur |
Shimano 26 Deore XT M8260 Di2 SGS 12spd |
|
Right Shifter |
Shimano Deore XT M8250 Shift Switch |
| Brakes | |
|
Brakes |
Shimano XT 8220 |
|
Front Rotor |
Shimano MT905, 203mm |
|
Rear Rotor |
Shimano MT905, 203mm |
| Cockpit | |
|
Grips / Bar Tape |
Santa Cruz Bicycles House Grips |
|
Handlebars |
Santa Cruz Carbon Bar All Sizes: 35x800mm, 35mm Rise |
|
Headset |
Cane Creek 50 IS Integrated Headset |
|
Saddle |
WTB Silverado Medium Fusion, CroMo SL |
|
Seatpost |
OneUp Dropper Post, 31.6 S: 120mm. M: 180mm, L: 210mm, XL/XXL: 240mm |
|
Stem |
OneUp Enduro Stem All Sizes: 42mm |
| Wheels | |
|
Front Rim |
Reserve 30|HD AL 6069 |
|
Front Hub |
DT Swiss 350, 15x110, 6-Bolt, 32h |
|
Front Tire |
Maxxis Assegai 29"x2.5", 3C MaxxGrip, EXO+ |
|
Rear Rim |
Reserve 30|HD AL 6069 |
|
Rear Hub |
DT Swiss 350 DEG, 12x148, MS, 6-Bolt, 72t, 32h |
|
Rear Tire |
Maxxis Minion DHRII 27.5"x2.5", 3C MaxxTerra, DoubleDown |
|
Valves |
Reserve Fillmore Valves |
| Ebike | |
|
Battery |
Bosch PowerTube Battery 600Wh |
|
Drive Unit |
Bosch Performance CX BDU38 |
| Specs | |
|
Bottom Bracket Shell |
EMTB |
|
Rear Brake Mount |
200mm PM |
|
Shock Length |
205mm |
|
Fork Axle to Crown |
571mm |
|
Fork Offset |
44mm |
|
Front Derailleur Mount |
No Compatibility |
|
Headset |
Integrated (IS41/52) |
|
Max Chainring Size |
36t |
|
Max Rotor Size |
220mm |
|
Max Tire Clearance May vary according to tire and rim model |
2.5" |
|
Rear Spacing |
148mm |
|
Rear Travel |
151mm |
|
Recommended Sag |
30% |
|
Seat Clamp Diameter |
36.4mm |
|
Shock Stroke |
60mm |
|
Suspension System |
Four-bar |
|
UDH Compatible |
Yes |
|
Water Bottle Mounts |
1 |
Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| Reach (Hi/Lo) | 435/432 | 460/456 | 480/477 | 500/497 | 525/522 |
| Stack (Hi/Lo) | 623/625 | 632/635 | 641/643 | 655/657 | 668/670 |
| Head Tube Angle (Hi/Lo) | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° | 64.2°/63.9° |
| Head Tube Length | 110 | 120 | 130 | 145 | 160 |
| Rear Center | 439 | 440 | 443 | 446 | 450 |
| Front Center | 771 | 800 | 825 | 851 | 883 |
| BB Height (Hi/Lo) | 344/340 | 344/340 | 344/340 | 344/340 | 344/340 |
| BB Drop Front (Hi/Lo) | 28/32 | 28/32 | 28/32 | 28/32 | 28/32 |
| BB Drop Rear (Hi/Lo) | 11/15 | 11/15 | 11/15 | 11/15 | 11/15 |
| Wheelbase | 1210 | 1240 | 1268 | 1297 | 1333 |
| Top Tube Length | 573 | 601 | 622 | 645 | 673 |
| Seat Tube Length | 380 | 400 | 420 | 460 | 500 |
| Seat Tube Angle (Hi/Lo) | 77.5°/77.2° | 77.5°/77.2° | 77.5°/77.2° | 77.5°/77.2° | 77.5°/77.2° |
| Standover Height (Hi/Lo) | 741/undefined | 735/undefined | 734/undefined | 734/undefined | 728/undefined |
